Socketpair program using Select System Call

Socketpair

• In this program, you are going to learn

• How to create a socket ?

• How to create a fork ?

• How to send a data ?

• How to recv a data?

• How to use socketpair APIs ?

  • socket

  • fork

  • send

  • recv

Topics in this section,

• socketpair FAQs

• Step 1: Sequence Diagram for socketpair.c

• Step 2: Program for socketpair.c

• Step 3: Compile and Execute socketpair.c

• Summary

socketpair FAQs : FAQs

Let us answer few basic questions in this socket

Why use socketpair in the program?

See Answer

socketpair creates a pair of connected sockets in the specified domain, allowing communication between processes.

What parameters does socketpair take?

See Answer

socketpair(domain, type, protocol, sv), where domain is typically AF_UNIX for local communication.

Why use AF_UNIX as the domain for socketpair?

See Answer

AF_UNIX is suitable for local communication within the same system.

What is the significance of SOCK_STREAM as the socket type?

See Answer

SOCK_STREAM provides a reliable, connection-oriented communication channel.

Can socketpair be used for network communication?

See Answer

No, socketpair is designed for local communication between processes on the same system.

Why is protocol often specified as 0 in the socketpair call?

See Answer

protocol is typically set to 0 to allow the system to choose the default protocol for the specified domain and type.

What is the purpose of the sv array in the socketpair call?

See Answer

It holds the file descriptors for the created sockets.

How does socketpair handle errors during execution?

See Answer

It returns -1 on error, and you can use perror to print an error message.

Can the created sockets be used for communication between unrelated processes?

See Answer

No, socketpair is typically used for communication between related processes (e.g., parent and child).

Can the created sockets be passed between processes using fork?

See Answer

Yes, both the parent and child processes have access to the created sockets.

How does socketpair differ from other socket creation functions like socket?

See Answer

socketpair creates a pair of connected sockets, while socket creates a single socket for network communication.

How is data sent from the parent to the child process?

See Answer

The parent uses the send function to transmit data over the socket pair.

How is data received by the child process?

See Answer

The child uses the recv function to receive data from the parent.

Why is close called for each socket in both parent and child processes?

See Answer

close is used to close unnecessary file descriptors, releasing resources.

What is the purpose of the select system call in network programming?

See Answer

To block and wait for activity on one or more file descriptors.

How does select help in handling multiple sockets efficiently?

See Answer

It provides a way to wait for readiness on multiple sockets without blocking the entire program.

What types of file descriptors can be monitored using select?

See Answer

sockets, files, timerfd, socketpair, message_queue, Namedpipes and shared_memory.

What is the significance of the timeout parameter in the select function?

See Answer

It specifies the maximum duration to wait for any file descriptor to become ready.

How do you handle errors when using the select system call?

See Answer

Check the return value for -1 to detect errors, Use perror to print error messages.

How does select handle a set of file descriptors with different states (e.g., reading, writing, exception)?

See Answer

Preparing File Descriptor Sets:

select(readfds, writefds, exceptfds);

Setting Up Readiness Conditions:

If you are interested in monitoring file descriptors for readability, you add them to the readfds set.

FD_ZERO(&readfds);

FD_SET(fd1, &readfds);

Setting Up Writability Conditions:

If you are interested in monitoring file descriptors for writability, you add them to the writefds set.

FD_ZERO(&writefds);

FD_SET(fd2, &writefds);

Setting Up Exceptional Conditions:

If you are interested in monitoring file descriptors for exceptional conditions, you add them to the exceptfds set.

FD_ZERO(&exceptfds);

FD_SET(fd3, &exceptfds);

How does select Checking Ready File Descriptors?

See Answer

After select returns, you can check the sets to determine which file descriptors are ready for the specified conditions.

if (FD_ISSET(fd1, &readfds)) {
        // fd1 is ready for reading
}
if (FD_ISSET(fd3, &writefds)) {
        // fd2 is ready for writing
}
if (FD_ISSET(fd4, &exceptfds)) {
        // fd3 has an exceptional condition
}

What does it mean if select returns 0?

See Answer

No file descriptors are ready within the specified timeout.

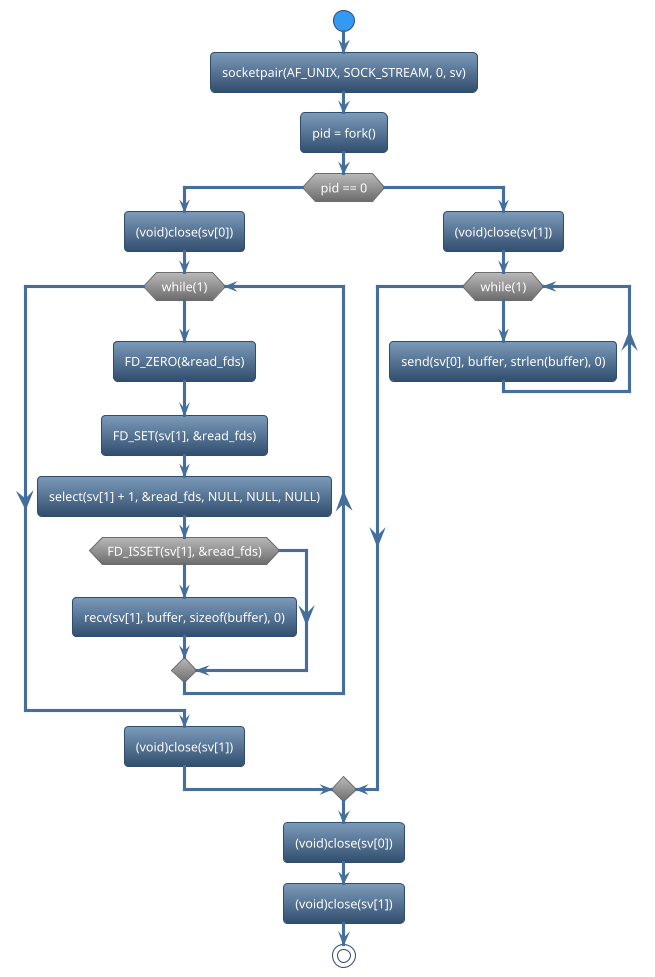

Step 1: Sequence Diagram for socketpair.c

Step 2: Program for socketpair.c

• There are many functions used in socketpair. We can classify those functions based on functionalities.

  • Create Socket

  • Fork

  • Select

  • Recv data_packet

  • Send data_packet

  • Close socket

• socketpair creates a pair of connected sockets for local inter-process communication. For example,

sockfd = socketpair(AF_UNIX, SOCK_STREAM, 0, sv);

• fork creates a child process, and both the parent and child processes can communicate through the socket pair. For example,

pid_t pid = fork();

• select() is used in network programming to monitor multiple file descriptors (usually sockets) for read, write, or error conditions. For example,

ret = select(sv[1] + 1, &read_fds, NULL, NULL, NULL);

• recv is used in network programming to receive data from a connected socket. For example,

ret = recv(sv[1], buffer, sizeof(buffer), 0);

• send is used in network programming to send data over a connected socket. For example,

ret = send(sv[0], buffer, strlen(buffer), 0);

• close is used to close the socket To free up system resources associated with the socket. For example,

(void)close(sv[0]);
(void)close(sv[1]);

• See the full program below,

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <signal.h>

#define BUFFER_SIZE 1024

int sv[2];

static void sigint_handler(
int signo)
{
   (void)close(sv[0]);
   (void)close(sv[1]);
   sleep(2);
   (void)printf("Caught sigINT!\n");
   exit(EXIT_SUCCESS);
}

void register_signal_handler(
int signum,
void (*handler)(int))
{
  if (signal(signum, handler) ==
  SIG_ERR) {
     printf("Cannot handle signal\n");
     exit(EXIT_FAILURE);
  }
}

int main()
{
  int sockfd;
  int ret;
  fd_set read_fds;
  char buffer[BUFFER_SIZE];

  register_signal_handler(SIGINT,
  sigint_handler);

  sockfd = socketpair(AF_UNIX,
  SOCK_STREAM, 0, sv);

  if (sockfd < 0) {
    perror("socketpair");
    return -1;
  }

  printf("Socket pair created\n");

  pid_t pid = fork();

  if (pid == -1) {
    perror("fork");
    return -2;
  }

  if (pid == 0) {
    // Child process (Server)
    (void)close(sv[0]);

    while (1) {
      FD_ZERO(&read_fds);
      FD_SET(sv[1], &read_fds);

      ret = select(sv[1] + 1,
      &read_fds, NULL, NULL, NULL);

      if (ret == -1) {
         perror("select");
         break;
      }

      if (FD_ISSET(sv[1],
      &read_fds)) {
        ret = recv(sv[1], buffer,
        sizeof(buffer), 0);

        if (ret < 0) {
          perror("recv");
          break;
        }

        buffer[ret] = '\0';
        printf("Received from server: %s\n",
        buffer);
      }
    }

    (void)close(sv[1]);
  } else {
    // Parent process (Client)
    (void)close(sv[1]);

    while (1) {
      memset(buffer, 0,
      sizeof(buffer));
      strncpy(buffer, "hello child",
      strlen("hello child") + 1);
      buffer[strlen(buffer) + 1] = '\0';

      ret = send(sv[0], buffer,
      strlen(buffer), 0);

      if (ret < 0) {
        perror("send");
        break;
      }
      printf("Sending client buffer = %s\n",
      buffer);
      sleep(1);
    }
  }

  (void)close(sv[0]);
  (void)close(sv[1]);
  return 0;
}

Step 3: Compile and Execute socketpair.c

$ gcc -o socketpair socketpair.c

$ sudo ./socketpair

Socket pair created
Sending client buffer = hello child
Received from server: hello child
Sending client buffer = hello child
Received from server: hello child
Sending client buffer = hello child
Received from server: hello child
Sending client buffer = hello child
Received from server: hello child
Sending client buffer = hello child
Received from server: hello child
Sending client buffer = hello child
Received from server: hello child
Sending client buffer = hello child
Received from server: hello child
Sending client buffer = hello child
Received from server: hello child
Sending client buffer = hello child
Received from server: hello child
Sending client buffer = hello child
Received from server: hello child
^CCaught sigINT!
Caught sigINT!

Summary

Socket API	Learning
socketpair	creates a pair of connected sockets for local inter-process communication.
fork	creates a child process, and both the parent and child processes can communicate through the socket pair.
select	Monitor multiple file descriptors (usually sockets) for read, write, or error conditions.
recv	Receive data from a connected socket.
send	Send data over a connected socket.
