RDP - Remote Desktop Protocol

What is RDP?

RDP (Remote Desktop Protocol) is a proprietary protocol developed by Microsoft that allows users to remotely connect to and control another computer over a network connection with a graphical interface.

Why is RDP useful?

RDP is useful for remote administration, technical support, remote work, and virtual desktop access. It enables users to interact with a full desktop environment from virtually anywhere.

How it works?

RDP transmits screen updates, keystrokes, and mouse movements between the remote client and the host system. It compresses and encrypts the data for secure communication and supports features like audio redirection, printer sharing, and clipboard sync.

Where is RDP used?

RDP is widely used in enterprise IT environments, data centers, and by end users for remote access to workstations and servers. It is also commonly used by system administrators for managing Windows-based systems remotely.

Which OSI layer does this protocol belong to?

RDP operates primarily at the Application Layer (Layer 7) of the OSI model, but it relies on the Transport Layer (Layer 4) for communication using TCP or UDP.

Is RDP Windows specific?

RDP is developed by Microsoft and built into Windows operating systems. While the RDP server is native to Windows, clients are available for other platforms like macOS, Linux, iOS, and Android.

Is RDP Linux specific?

No, RDP is not Linux specific. However, Linux systems can use RDP clients (e.g., Remmina, FreeRDP, rdesktop) to connect to RDP servers. RDP servers for Linux also exist, such as xrdp.

Which Transport Protocol is used by RDP?

RDP uses TCP as the primary transport protocol. Newer versions also support UDP for better performance, especially in high-latency or lossy networks.

Which Port is used by RDP?

By default, RDP uses TCP port 3389. In some configurations, UDP port 3389 is also used for enhanced performance.

Is RDP using Client server model?

Yes, RDP follows a client-server model, where the client (remote device) connects to the server (host machine) to access and control its desktop environment.

Topics in this section,

  • In this section, you are going to learn

  • Terminology

  • Version Info

Version & RFC Details

RDP Version

Spec/Version

Year

Core Idea / Contribution

Remote Desktop Protocol (RDP)

MS-RDPBCGR

2007-2025

Defines RDP core protocol: connectivity, graphics remoting, input handling. Continuously updated.

Remote Desktop Services Overview

MS-RDSOD

2007-2025

Overview of all RDP-related protocols including redirection, licensing, and session management.

RemoteFX Extensions

MS-RDPEV, MS-RDPEGFX, etc.

2010

Extensions for multimedia, graphics acceleration, and USB redirection.

RDP Protocol Versions

MS-RDPBCGR v1.0-61.0

2007-2025

Major revisions published regularly. Latest version: 61.0 (April 2025).

Testcase 1: RDP Setup for IPv4 without Security

  • Step-1 : Launch Server (Ubuntu)

    Note

    Update system and install xrdp

    sudo apt update && sudo apt upgrade -y
sudo apt install xrdp -y

    Note

    Assign IP address to server interface

    sudo ip addr add 192.168.1.1/24 dev enx503eaa96bbf0
sudo ip link set enx503eaa96bbf0 up
sudo systemctl enable xrdp
sudo systemctl start xrdp

    Note

    Install XFCE desktop environment and restart xrdp

    sudo apt install xfce4 xfce4-goodies -y
sudo systemctl restart xrdp
sudo ufw allow 3389/tcp

    Note

    Install and configure LightDM display manager

    sudo apt install lightdm -y
sudo dpkg-reconfigure lightdm
sudo systemctl disable gdm3 --now
sudo systemctl enable lightdm --now

    Note

    Configure XFCE session startup

    echo '#!/bin/sh' > ~/.xsession
echo '/usr/lib/policykit-1-gnome/polkit-gnome-authentication-agent-1 &' >> ~/.xsession
echo 'startxfce4' >> ~/.xsession
chmod 755 ~/.xsession

    Note

    Update /etc/xrdp/startwm.sh to start XFCE session

    sudo nano /etc/xrdp/startwm.sh
#!/bin/sh
unset DBUS_SESSION_BUS_ADDRESS
unset XDG_RUNTIME_DIR
exec startxfce4
sudo chmod +x /etc/xrdp/startwm.sh

  • Step-2 : Launch Client (Ubuntu)

    Note

    Update system, install FreeRDP client and assign client IP

    sudo apt update
sudo apt install freerdp2-x11 -y
sudo ip addr add 192.168.1.2/24 dev enp1s0
sudo ip link set enp1s0 up

    Note

    Connect to server using RDP

    xfreerdp /v:192.168.1.1 /u:<USERNAME> /p:<PASSWORD>

  • Step-3 : Session Handling

    Note

    Logout properly from XFCE before closing client session If logout fails, manually clear processes

    ps -ef | grep Xorg
ps -ef | grep xfce
ps -ef | grep xrdp

sudo pkill -f Xorg
sudo pkill -f xfce
sudo pkill -f xrdp-sesman
sudo systemctl restart xrdp

  • Expected Results

    1. Client connects to server using RDP over IPv4 without encryption.

    2. Wireshark shows RDP traffic on TCP 3389, unencrypted.

    3. Session stable until logout.

  • Wireshark Capture

    Download Wireshark capture

Testcase 2: RDP Setup for IPv4 with Security (TLS)

  • Step-1 : Launch Server (Ubuntu)

    Note

    Update system and install xrdp

    sudo apt update && sudo apt upgrade -y
sudo apt install xrdp -y

    Note

    Assign IP address to server interface

    sudo ip addr add 192.168.1.1/24 dev enx503eaa96bbf0
sudo ip link set enx503eaa96bbf0 up
sudo systemctl enable xrdp
sudo systemctl start xrdp

    Note

    Install XFCE desktop and restart xrdp

    sudo apt install xfce4 xfce4-goodies -y
sudo systemctl restart xrdp
sudo ufw allow 3389/tcp

    Note

    Install and configure LightDM

    sudo apt install lightdm -y
sudo dpkg-reconfigure lightdm
sudo systemctl disable gdm3 --now
sudo systemctl enable lightdm --now

    Note

    Configure XFCE session startup

    echo '#!/bin/sh' > ~/.xsession
echo '/usr/lib/policykit-1-gnome/polkit-gnome-authentication-agent-1 &' >> ~/.xsession
echo 'startxfce4' >> ~/.xsession
chmod 755 ~/.xsession

sudo nano /etc/xrdp/startwm.sh
#!/bin/sh
unset DBUS_SESSION_BUS_ADDRESS
unset XDG_RUNTIME_DIR
exec startxfce4
sudo chmod +x /etc/xrdp/startwm.sh

    Note

    Generate self-signed TLS certificate

    sudo mkdir -p /etc/xrdp/cert
cd /etc/xrdp/cert
sudo openssl req -x509 -newkey rsa:4096 -keyout xrdp.key -out xrdp.crt -days 365 -nodes -subj "/CN=$(hostname)"
sudo chmod 600 xrdp.key

    Note

    Configure TLS in /etc/xrdp/xrdp.ini

    [Globals]
security_layer=tls
crypt_level=high
certificate=/etc/xrdp/cert/xrdp.crt
key_file=/etc/xrdp/cert/xrdp.key

sudo chown root:xrdp /etc/xrdp/cert/xrdp.*
sudo chmod 640 /etc/xrdp/cert/xrdp.*
sudo usermod -aG xrdp xrdp
sudo systemctl restart xrdp

  • Step-2 : Launch Client (Ubuntu with FreeRDP from source)

    Note

    Install build dependencies, clone FreeRDP, and build from source

    sudo apt update
sudo apt install -y git cmake ninja-build build-essential pkg-config \
   libssl-dev libx11-dev libxext-dev libxrandr-dev libxinerama-dev \
   libxkbfile-dev libxi-dev libxrender-dev libxcursor-dev libxtst-dev \
   libxfixes-dev libxkbcommon-dev libxkbcommon-x11-0 libwayland-dev \
   wayland-protocols libpulse-dev libasound2-dev libcups2-dev \
   libavcodec-dev libavutil-dev libswscale-dev libswresample-dev

git clone https://github.com/FreeRDP/FreeRDP.git
cd FreeRDP && mkdir build && cd build
cmake -G Ninja .. -DCMAKE_BUILD_TYPE=Release \
   -DCMAKE_INSTALL_PREFIX=/opt/freerdp-keylog \
   -DWITH_OPENSSL=ON -DWITH_MBEDTLS=OFF -DWITH_X11=ON -DWITH_PULSE=ON
ninja
sudo ninja install

echo '/opt/freerdp-keylog/lib/x86_64-linux-gnu' | sudo tee /etc/ld.so.conf.d/freerdp-keylog.conf
sudo ldconfig

    Note

    Prepare secrets file and connect to server using TLS

    KEYS="$HOME/freerdp_tls.keys"
xfreerdp /v:192.168.1.1 /u:<USERNAME> /p:<PASSWORD> /tls:secrets-file:"$KEYS" /cert:ignore

  • Step-3 : Session Handling

    Note

    Properly log out before closing RDP client; clear processes if logout fails

    ps -ef | grep Xorg
ps -ef | grep xfce
ps -ef | grep xrdp

sudo pkill -f Xorg
sudo pkill -f xfce
sudo pkill -f xrdp-sesman
sudo systemctl restart xrdp

  • Expected Results

    1. Client connects securely to the RDP server using TLS.

    2. Wireshark shows TLS handshake and encrypted traffic on TCP 3389.

    3. Secrets file allows decryption in Wireshark.

  • Wireshark Capture

    Download Wireshark capture

  • Keys File for Decryption

    Download Keys file

Testcase 1: RDP Setup for IPv6 without Security

  • Step-1 : Launch Server (Ubuntu)

    Note

    Update system and install xrdp

    sudo apt update && sudo apt upgrade -y
sudo apt install xrdp -y

    Note

    Assign IPv6 address to server interface

    sudo ip addr add fd12:3456:789a::1/64 dev enx503eaa96bbf0
sudo ip link set enx503eaa96bbf0 up
sudo systemctl enable xrdp
sudo systemctl start xrdp

    Note

    Install XFCE desktop and restart xrdp

    sudo apt install xfce4 xfce4-goodies -y
sudo systemctl restart xrdp
sudo ufw allow 3389/tcp

    Note

    Install and configure LightDM

    sudo apt install lightdm -y
sudo dpkg-reconfigure lightdm
sudo systemctl disable gdm3 --now
sudo systemctl enable lightdm --now

    Note

    Configure XFCE session startup

    echo '#!/bin/sh' > ~/.xsession
echo '/usr/lib/policykit-1-gnome/polkit-gnome-authentication-agent-1 &' >> ~/.xsession
echo 'startxfce4' >> ~/.xsession
chmod 755 ~/.xsession

sudo nano /etc/xrdp/startwm.sh
#!/bin/sh
unset DBUS_SESSION_BUS_ADDRESS
unset XDG_RUNTIME_DIR
exec startxfce4
sudo chmod +x /etc/xrdp/startwm.sh

    Note

    Restart xrdp service after session setup

    sudo systemctl restart xrdp

  • Step-2 : Launch Client (Ubuntu)

    Note

    Update system, install FreeRDP client, and assign client IPv6

    sudo apt update
sudo apt install freerdp2-x11 -y
sudo ip addr add fd12:3456:789a::2/64 dev enp1s0
sudo ip link set enp1s0 up

    Note

    Connect to server using RDP

    xfreerdp /v:fd12:3456:789a::1 /u:<USERNAME> /p:<PASSWORD>

  • Step-3 : Session Handling

    Note

    Logout properly from XFCE before closing client session. If logout fails, manually clear processes.

    ps -ef | grep Xorg
ps -ef | grep xfce
ps -ef | grep xrdp

sudo pkill -f Xorg
sudo pkill -f xfce
sudo pkill -f xrdp-sesman
sudo systemctl restart xrdp

  • Expected Results

    1. Client connects using RDP over IPv6 without encryption.

    2. Wireshark shows RDP traffic on TCP 3389 (IPv6) unencrypted.

    3. Session remains stable until logout.

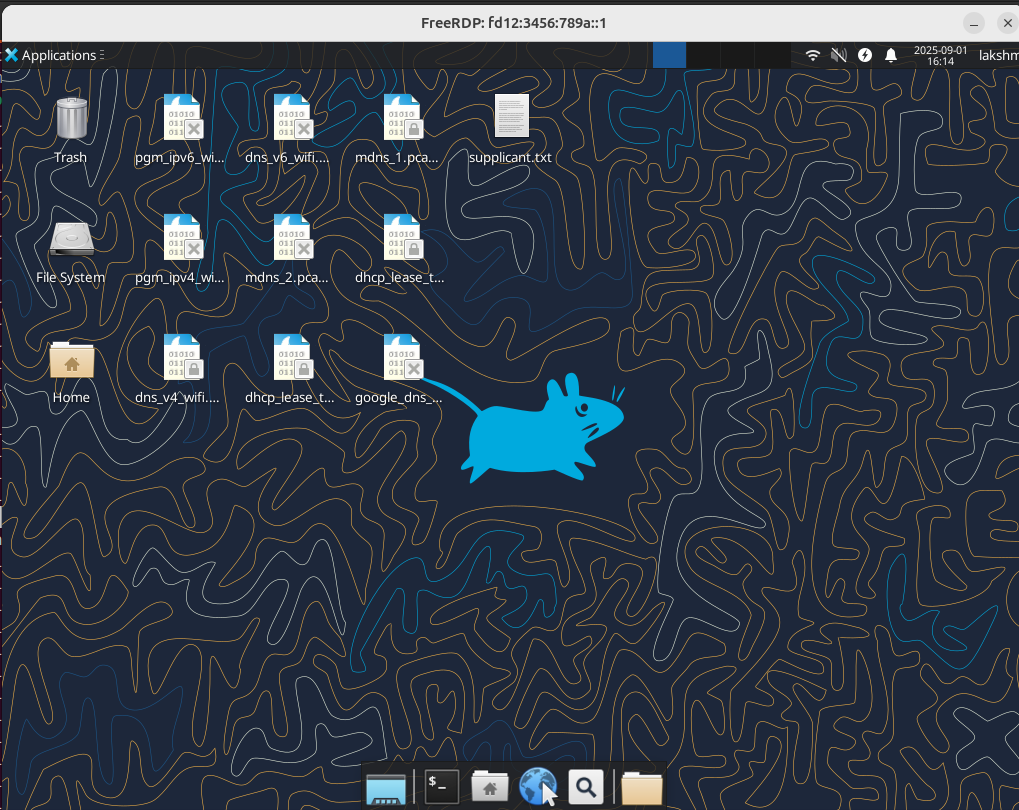

RDP connection setup

Testcase 2: RDP Setup for IPv6 with Security (TLS)

  • Step-1 : Launch Server (Ubuntu)

    Note

    Update system and install xrdp

    sudo apt update && sudo apt upgrade -y
sudo apt install xrdp -y

    Note

    Assign IPv6 address to server interface

    sudo ip addr add fd12:3456:789a::1/64 dev enx503eaa96bbf0
sudo ip link set enx503eaa96bbf0 up
sudo systemctl enable xrdp
sudo systemctl start xrdp

    Note

    Install XFCE desktop and restart xrdp

    sudo apt install xfce4 xfce4-goodies -y
sudo systemctl restart xrdp
sudo ufw allow 3389/tcp

    Note

    Install and configure LightDM

    sudo apt install lightdm -y
sudo dpkg-reconfigure lightdm
sudo systemctl disable gdm3 --now
sudo systemctl enable lightdm --now

    Note

    Configure XFCE session startup

    echo '#!/bin/sh' > ~/.xsession
echo '/usr/lib/policykit-1-gnome/polkit-gnome-authentication-agent-1 &' >> ~/.xsession
echo 'startxfce4' >> ~/.xsession
chmod 755 ~/.xsession

sudo nano /etc/xrdp/startwm.sh
#!/bin/sh
unset DBUS_SESSION_BUS_ADDRESS
unset XDG_RUNTIME_DIR
exec startxfce4
sudo chmod +x /etc/xrdp/startwm.sh

    Note

    Generate self-signed TLS certificate

    sudo mkdir -p /etc/xrdp/cert
cd /etc/xrdp/cert
sudo openssl req -x509 -newkey rsa:4096 -keyout xrdp.key -out xrdp.crt -days 365 -nodes -subj "/CN=$(hostname)"
sudo chmod 600 xrdp.key

    Note

    Configure TLS in /etc/xrdp/xrdp.ini

    [Globals]
security_layer=tls
crypt_level=high
certificate=/etc/xrdp/cert/xrdp.crt
key_file=/etc/xrdp/cert/xrdp.key

sudo chown root:xrdp /etc/xrdp/cert/xrdp.*
sudo chmod 640 /etc/xrdp/cert/xrdp.*
sudo usermod -aG xrdp xrdp
sudo systemctl restart xrdp

  • Step-2 : Launch Client (Ubuntu with FreeRDP from source)

    Note

    Install build dependencies, clone FreeRDP, and build from source

    sudo apt update
sudo apt install -y git cmake ninja-build build-essential pkg-config \
   libssl-dev libx11-dev libxext-dev libxrandr-dev libxinerama-dev \
   libxkbfile-dev libxi-dev libxrender-dev libxcursor-dev libxtst-dev \
   libxfixes-dev libxkbcommon-dev libxkbcommon-x11-0 libwayland-dev \
   wayland-protocols libpulse-dev libasound2-dev libcups2-dev \
   libavcodec-dev libavutil-dev libswscale-dev libswresample-dev

git clone https://github.com/FreeRDP/FreeRDP.git
cd FreeRDP && mkdir build && cd build
cmake -G Ninja .. -DCMAKE_BUILD_TYPE=Release \
   -DCMAKE_INSTALL_PREFIX=/opt/freerdp-keylog \
   -DWITH_OPENSSL=ON -DWITH_MBEDTLS=OFF -DWITH_X11=ON -DWITH_PULSE=ON
ninja
sudo ninja install

echo '/opt/freerdp-keylog/lib/x86_64-linux-gnu' | sudo tee /etc/ld.so.conf.d/freerdp-keylog.conf
sudo ldconfig

    Note

    Prepare secrets file and connect to server using TLS

    KEYS="$HOME/freerdp_tls_ipv6.keys"
xfreerdp /v:fd12:3456:789a::1 /u:<USERNAME> /p:<PASSWORD> /tls:secrets-file:"$KEYS" /cert:ignore

  • Step-3 : Session Handling

    Note

    Properly log out before closing RDP client; clear processes if logout fails

    ps -ef | grep Xorg
ps -ef | grep xfce
ps -ef | grep xrdp

sudo pkill -f Xorg
sudo pkill -f xfce
sudo pkill -f xrdp-sesman
sudo systemctl restart xrdp

  • Expected Results

    1. Client connects securely using TLS over IPv6.

    2. Wireshark shows TLS handshake and encrypted RDP traffic on TCP 3389 (IPv6).

    3. Secrets file allows decryption in Wireshark.

    4. Session remains stable until logout.

  • Wireshark Capture

    Download Wireshark capture

  • Keys File for Decryption

    Download Keys file

RDP Negotiation Request

Protocol Packet Details

S.No

Protocol Packets

Description

Size(bytes)

1

RDP Negotiation Request

Sent from client to server

Type

Set to 0x01 for negotiation request

1

Flags

Security flags (e.g., TLS, CredSSP)

1

Length

Total length of the request

2

Requested Protocols

Bitmask of supported security protocols

4

RDP Negotiation Response

Protocol Packet Details

S.No

Protocol Packets

Description

Size(bytes)

2

RDP Negotiation Response

Sent from server to client

Type

Set to 0x02 for negotiation response

1

Flags

Security flags

1

Length

Total length of the response

2

Selected Protocol

Protocol chosen by the server

4

MCS Connect Initial

Protocol Packet Details

S.No

Protocol Packets

Description

Size(bytes)

3

MCS Connect Initial

Part of T.125 layer, includes GCC block

Calling Domain Selector

Identifier for client domain

variable

Called Domain Selector

Identifier for server domain

variable

Upward Flag

Indicates upward connection

1

Target Parameters

Domain/channel parameters

variable

Minimum Channels

Minimum number of channels supported

2

Maximum Channels

Maximum number of channels supported

2

GCC Block

Contains client core, security, network data

variable

MCS Connect Response

Protocol Packet Details

S.No

Protocol Packets

Description

Size(bytes)

4

MCS Connect Response

Server replies with its capabilities

Result

Connection result code

1

Called Connect ID

Server-assigned connection ID

2

Domain Parameters

Server domain/channel parameters

variable

GCC Block

Contains server core, security, network data

variable

Client Info PDU

Protocol Packet Details

S.No

Protocol Packets

Description

Size(bytes)

5

Client Info PDU

Sent after security exchange

Code Page

Character encoding used

4

Flags

Session flags

4

Domain Length

Length of domain string

2

Username Length

Length of username string

2

Password Length

Length of password string

2

Alternate Shell Length

Length of shell string

2

Working Dir Length

Length of working directory string

2

Unicode Strings

Actual strings (domain, username, etc.)

variable

Control PDU

Protocol Packet Details

S.No

Protocol Packets

Description

Size(bytes)

6

Control PDU

Used for session control actions

Action

Control action (e.g., Request Control)

4

User ID

Identifier of the user

2

Padding

Reserved, must be zero

6

Virtual Channel PDU

Protocol Packet Details

S.No

Protocol Packets

Description

Size(bytes)

7

Virtual Channel PDU

Used for clipboard, audio, printer redirection

Channel ID

Identifier of the virtual channel

2

Length

Length of the data

2

Flags

Compression and priority flags

2

Data

Actual payload

variable

RDP - Use Cases

S.No

Use Case

Description

1

Remote Desktop Access

Allows users to connect to and control a remote computer as if they were physically present.

2

Remote Administration

IT administrators use RDP to manage servers and workstations remotely.

3

Helpdesk and Support

Support teams use RDP to troubleshoot and resolve user issues remotely.

4

Virtual Desktop Infrastructure (VDI)

RDP is used to deliver virtual desktops to users from centralized servers.

5

Secure Remote Work

Enables employees to work from home securely by accessing corporate desktops.

6

Application Virtualization

Specific applications can be run remotely and displayed locally using RDP.

7

Multi-Monitor Support

RDP supports multiple monitors, enhancing productivity for remote users.

8

Clipboard and File Redirection

Allows copy-paste and file transfer between local and remote systems.

9

Printer and Audio Redirection

Redirects local printers and audio devices to the remote session.

10

Session Reconnection

Supports automatic reconnection to interrupted sessions.

11

Bandwidth Optimization

Uses compression and caching to optimize performance over slow networks.

12

Remote App Publishing

Allows publishing of individual apps instead of full desktops.

13

Smart Card Authentication

Supports smart card login for secure authentication.

14

Load Balancing and Gateway Access

Works with RD Gateway and Connection Broker for scalable deployments.

  • features

  • Reference links
